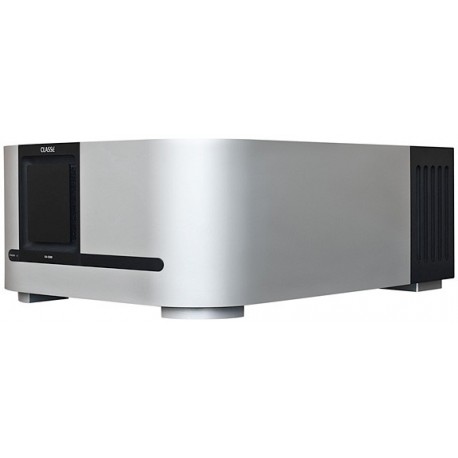

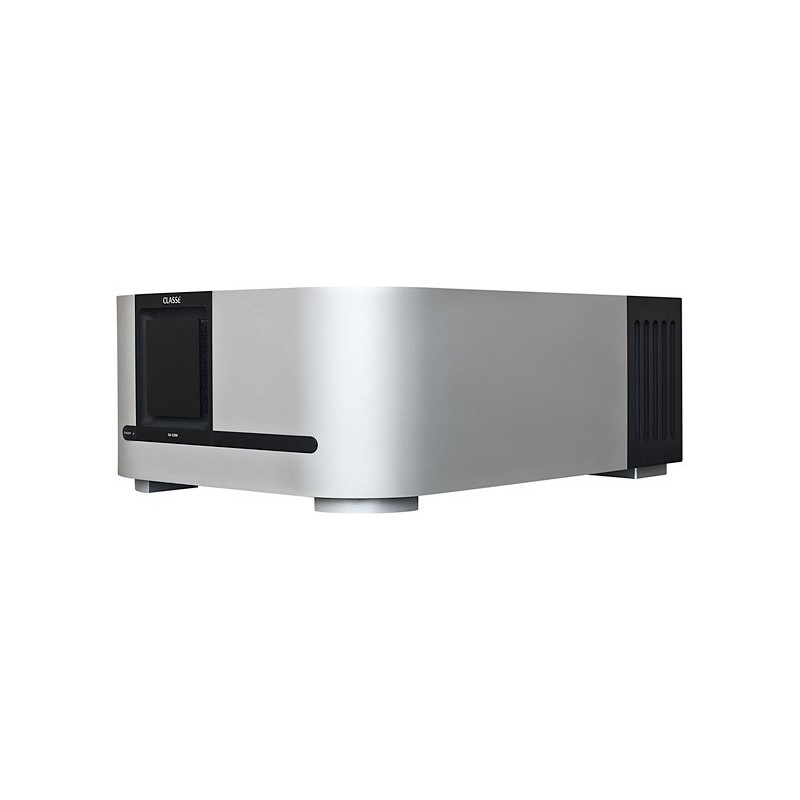

CLASSE AUDIO CA5300 BLOC DE PUISSANCE 5X300W

Frequency response

1 Hz - 100 kHz, -3dB

Output power

300W rms into 8? (24.8 dBW)

Harmonic Distortion

<0.002% at 1 kHz balanced <0.004% at 1 kHz single ended

Peak Output Voltage

167V peak to peak, 53V rms no load 156V peak to peak, 48V rms into 8?

Input Impedance

50k? balanced / single ended

Voltage gain

29dB balanced / single ended

Input level at clipping

2.1V rms balanced / single ended

Intermodulation Distortion

>90dB below fundamental into 8? balanced / single ended >85dB below fundamental into 4? balanced / single ended

Signal to Noise Ratio

-116dB at peak output into 8? Measurement Bandwidth: 22 kHz

Output impedance

0.03? @ 1 kHz

Standby power consumption

< 1W

Rated power consumption

1020W @ 1/8th power into 8?

Width

17.5” (444mm)

Depth

22.52” (572mm)

Height

8.78” (223mm)

Gross weight

115 lb (52.3 kg)

Net weight

105 lb (47.7 kg)

Mains voltage

Specified on rear panel
