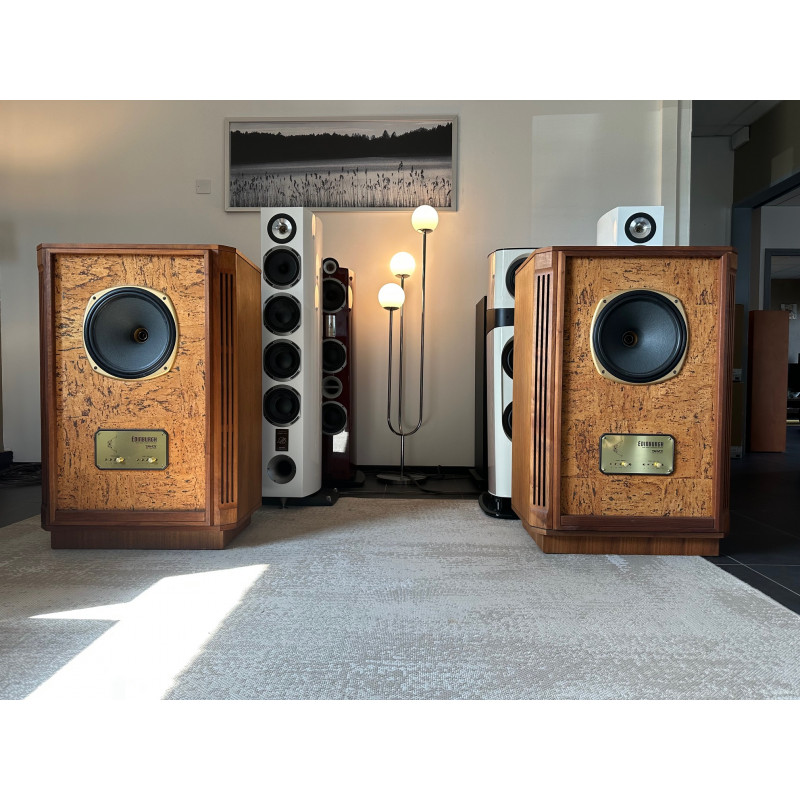

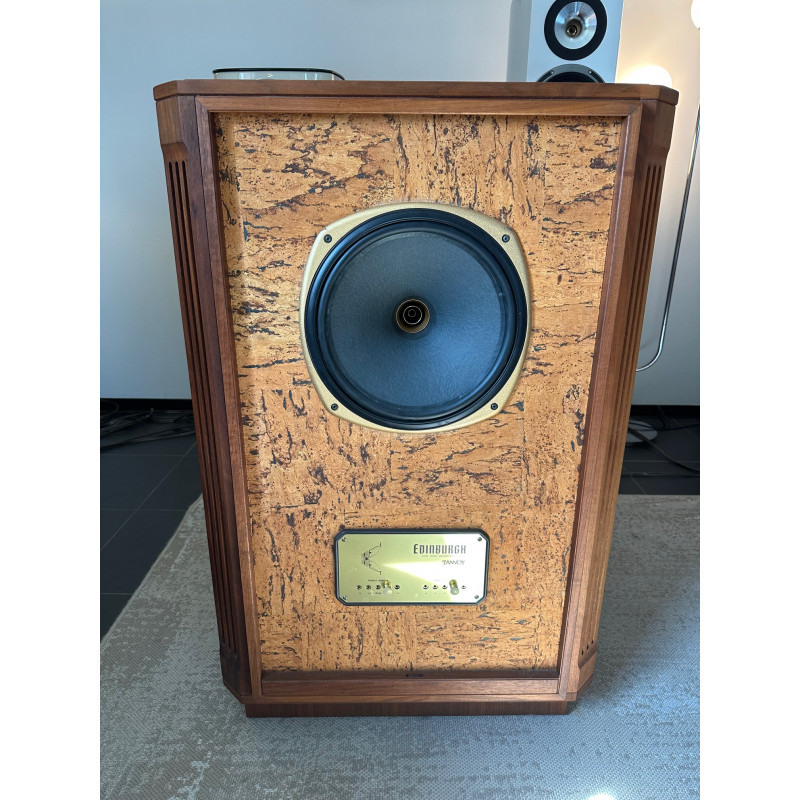

TANNOY EDINBURGH ENCEINTES LA PAIRE SUPERBE OCCASION A SAISIR

TECHNICAL SPECIFICATION PERFORMANCE Recommended amplifier power Power handling Power handling Maximum SPL 50 - 200 watts 120 watts RMS. 450 Watts Peak 115dB (120 Watts RMS / 1m) 120dB (450 Watts Peak / 1m) Sensitivity Nominal impedance Frequency response 94dB (2.83v @ 1m) 8 ohms 28Hz - 25kHz -6dB Total harmonic distortion DRIVE UNIT Less than 1.35% @ 120 watts RMS (50Hz – 20kHz) Dual Concentric mid/bass frequency Dual Concentric high frequency Dispersion CROSSOVER Frequency Type Adjustment CABINET Enclosure type Volume 300mm (12") Dual ConcentricTM driver utilising a paper pulp cone with HE twin roll fabric surround with 52mm edgewound voice coil 33mm (1.3") unit centrally mounted within the bass unit voice coil to achieve a true coincident acoustic point source. Tulip Waveguide and edge wound voice coil. 90 degrees conical 1.1kHz Bi-wired, hard wired passive, low loss 3rd order low frequency. 1st order compensated high frequency. +/- 3dB over 1.1kHz to 25kHz shelving. + 2dB to – 6dB per octave over 5.0kHz to 25kHz slope. Distributed port reflex 200 litres Dimensions mm (inches) Material Weight kgs (lbs) Finish options 1020h x 660w x 420d (40.2h x 26w x 16.5d) 18 mm high-density enclosure material internally cross-braced and heavily damped. 36 (79.4) Walnut veneer and solid walnut edging and trim detail
