magnum md105 tuner ht de gamme

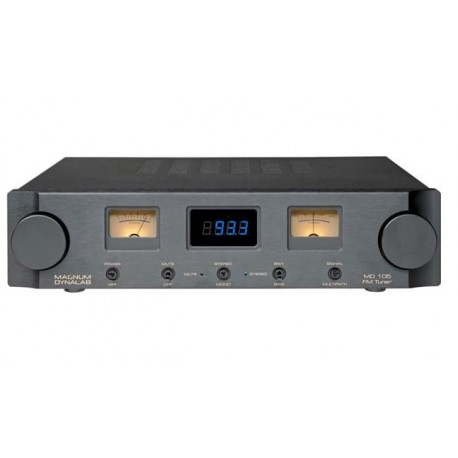

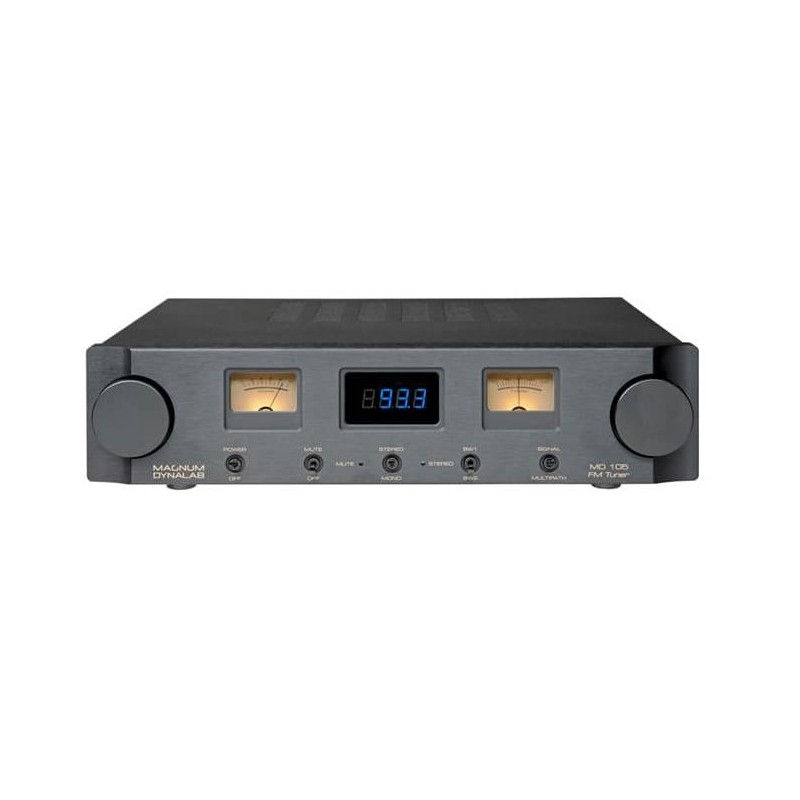

MAGNUM DYNALAB MD-105

Usable sensitivity- Mono – 0.7 uV 9.0 dBf
50 dB quieting – Mono – 2.0 uV 9.9 dBf
50 dB quieting – Stereo – 2.3 uV 25.0 dBf
Capture ratio – 1.5 dB
Image rejection – 110.0 dB
Signal to noise ratio – 80.0 dB
Alternate channel – Wide – 40.0 dB
Alternate channel – Narrow – 70.0 dB
Adjacent channel – Wide – 3.0 dB
Adjacent channel – Narrow – 35.0 dB
THD – Mono – 0.10 %
THD – Stereo – 0.18 %
Stereo separation – 50.0 dB
AM suppression – 70.0 dB
SCA rejection – 80.0 dB
IF rejection – 80.0 dB
19 KHz and 38 KHz component rejection – 75.0 dB
Audio frequency response (+/- 1 dB) – 15 Hz – 17 KHz
Balanced audio output (600 ohms) 2.2 V
Line audio output (RCA) – 1.0 V
Line power (Must be specified) –
110/220/230/240- VAC
Dimensions (inches H.W.D.) – 4 x 19 x 15
Dimensions (cm H.W.D.) – 11.43 x 48.3 x 38.1
Weight (lbs./kgs) – 18/7.96
Power consumption (Typ/Max) – 50w/100w
Finition: noire
Option Façade argent
Option télécommande pure analogique
Option DAC
