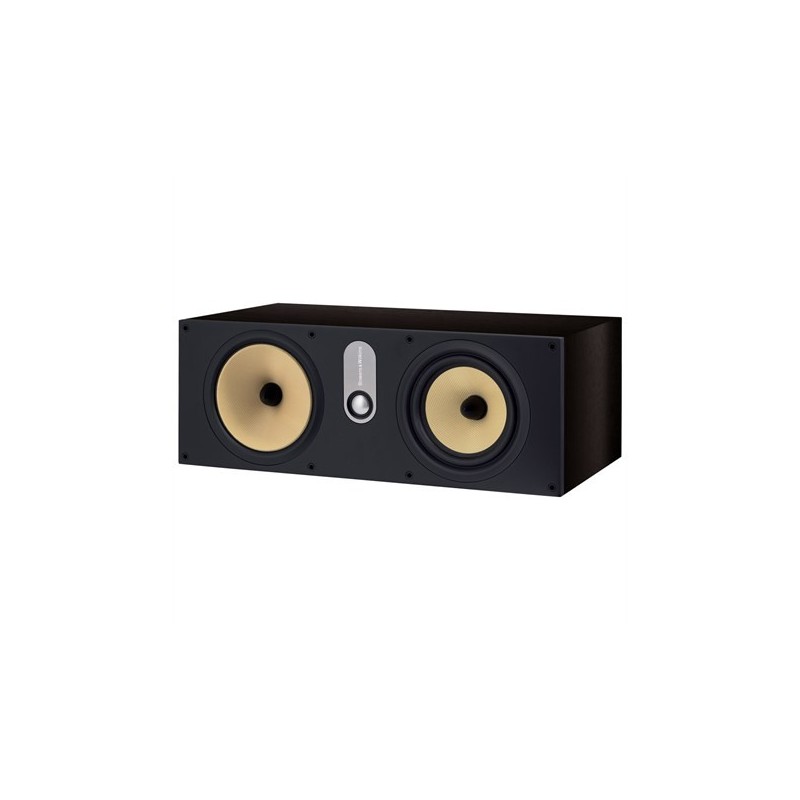

nouveaute ! BW HTM61 VOIE CENTRALE Woven Kevlar Crossover Tuning Nautilus Tapering Tube Flowport Mushrooms FST Tweeter on Top Matrix Rohacell Diamond Tweeters Sphere / Tube Enclosure De-Coupling Nautilus Technical features Nautilus™ tube loaded aluminium dome tweeter Kevlar® brand fibre cone FST™ midrange Kevlar® brand fibre cone bass Flowport™ Magnetic shielding Description 3-way vented-box system Drive units 1 x ø25mm (1 in) aluminium dome high-frequency 1 x ø150mm (6 in) woven Kevlar® cone FST™ midrange 1 x ø165mm (6.5 in) woven Kevlar® cone bass Frequency range -6dB at 30Hz and 50kHz Frequency response 38Hz - 22kHz ±3dB on reference axis Dispersion Within 2dB of reference response Horizontal: over 20º arc Vertical: over 60º arc Sensitivity 90dB spl (2.83V, 1m) Harmonic distortion 2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 22kHz <0.5% 120Hz - 20kHz Nominal impedance 8? (minimum 3.0?) Crossover frequencies 350Hz, 4kHz Crossover Filters 1st Order – tweeter 2nd Order – midrange low pass 2nd Order – midrange high pass 3rd Order – bass Recommended amplifier power 30W - 150W into 8? on unclipped programme Max. recommended cable impedance 0.1? Dimensions Height: 198mm ( 7.8 in) Width: 545mm ( 21.5 in) Depth: 339mm ( 13.4 in) Net weight 15.4kg (34 lb) Finishes Black Ash Vinyl Light Oak Vinyl Red Cherry Vinyl Wengé Vinyl
