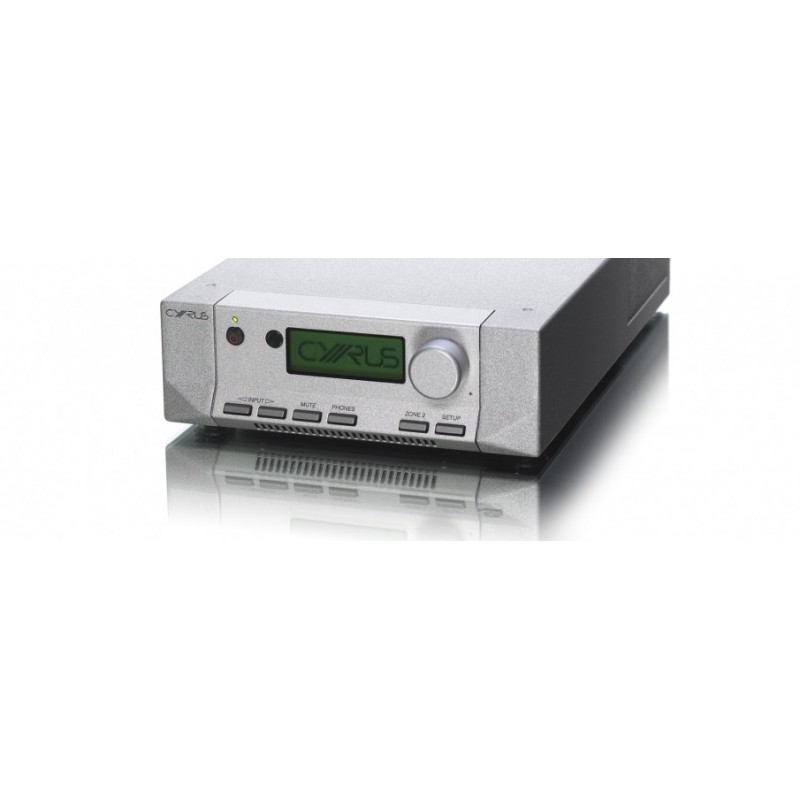

cyrus 8.2 dac ampli intégré 2x70w avec carte numérique

Construction Enclosure - Cyrus Inverted die-cast chassis

ElectricalLine inputs 6 analogue 8 DAC - Digital inputs - 2 electrical SPDIF + 2 optical SPDIF + 1 USB Computer slave input

Outputs Zone 2 or tape Bi-wire Loudspeakers Tape-out Preamp-out Headphone

Internal power Supplies - 1 x 350 VA Toroidal transformer with 5 regulated rails, plus separate toroidal transformer for control systems

External - Highly regulated PSX-R upgradeable

Communications MC-BUS™ System BUS Remote Control Supplied with Cyrus system remote control Standby power consumption less than 1W

Specifications 8 DACContinuous Power - 115 W/CH (into 4 Ohms) 70 W/CH (into 8 Ohms) Burst Power - 320 W (IHF, one channel driven into 1 Ohm) Distortion - 0.002%, 1 kHz (into 8 Ohms) 0.005%, 1 kHz (into 4 Ohms) Frequency Response - -3 dB, 0.1Hz and 100kHz Damping Factor (1kHz) - 150 Input sensitivity (70W) - Line: 237mV Input impedance - 40kOhm (RCA). Output voltage - 237mV (Tape out), 480mV (Pre out) S/N Ratio - 105dBA (ref. 40W) Channel Balance - ±0.2dB (0dB to -63dB) Volume control accuracy - ±0.1dB (0dB to -63dB) Dimensions (H x W x D) -73 x 215 x 360 (mm) Weight - 5.9 kg Finish - Quartz silver or Brushed Black

Digital audio performance, 8 DAC model Pre-outInput voltage - 500mV pk-pk Input Impedance - 75 Ohms Sample rate range - 32k – 96k Audio formats - PCM stereo only S/N ratio (Pre out, 0db FS) - Better than 100dba THD+N (pre-out, 0db FS) - Less than 0.004%

QX DAC moduleInput voltage - 500mV pk-pk Input Impedance - 75 Ohms Sample rate range - 32k – 96k Audio formats - PCM stereo only S/N ratio (Pre out, 0db FS) - Better than 100dba THD+N (pre-out, 0db FS) - Less than 0.002% Three additional high performance regulated power supplies, Up-samples to 192kHz, Factory trimmed quartz master clock for accurate re-clocking
