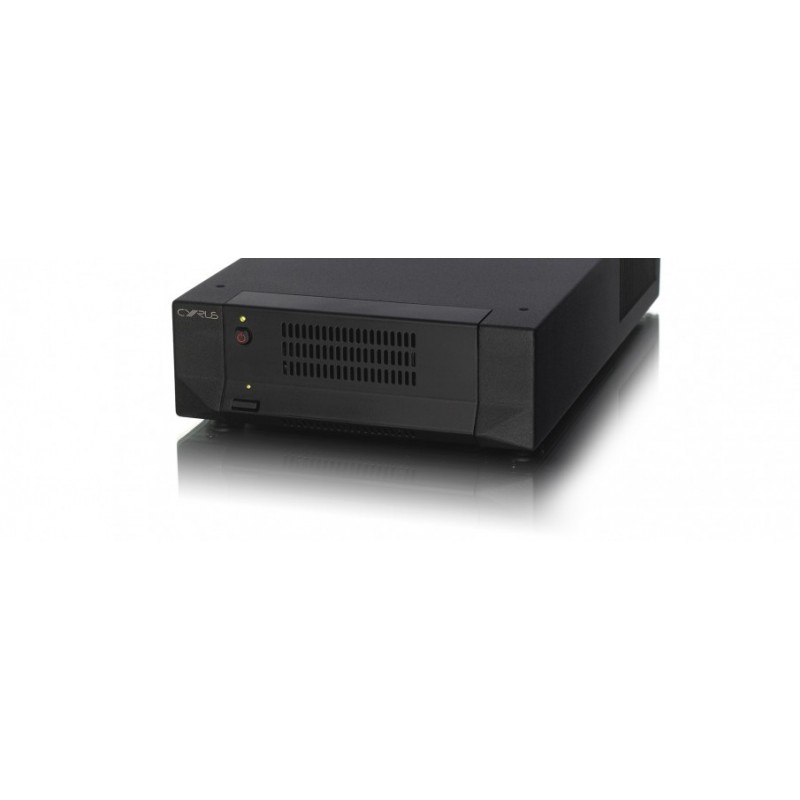

cyrus mono 300 bloc mono 235w/8ohms

Technical Information

Construction

Enclosure: Cyrus Inverted die-cast chassis Material: Lightweight non-magnetic alloy

Electrical

Inputs:                                   RCA phono or XLR balanced 12V Trigger RS232

Outputs:                                  Bi-wire Loudspeakers (BFA terminals) RCA Chain out RS232

Power Supply: Custom wound 305VA Toroidal transformer

Communications:                      MC-BUSTM System Bus RS232

Specifications

Continuous Power: 235W (into 8 Ohms), 365W (into 4 Ohms)

Burst Peak Power: >2000W

Distortion: <0.004%, (1kHz into 8 Ohms)

Frequency Response: -3 dB at 0.5Hz and 300kHz

Slew rate: 700V/S (filters bypassed)

Max output Current: 100 Amps peak to peak

Sensitivity (RCA input): 380mV (for 50W into 8 Ohms)

Sensitivity (RCA input): 890mV (for 225W into 8 Ohms)

Sensitivity (BAL input): 775mV (for 50W into 8 Ohms)

Sensitivity (BAL input): 1.78V (for 225W into 8 Ohms)

Input impedance: 47kΩ (RCA), 20kΩ (BAL)

Chain Output voltage: 660mV (for 660mV RCA or 1.3V BAL input)

S/N ratio: 116dBA

Dimensions (H x W x D): 73 x 215 x 360 (mm), 2.8 x 8.4 x14.1 (inches)

Weight:        6.4kg
